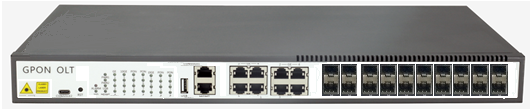

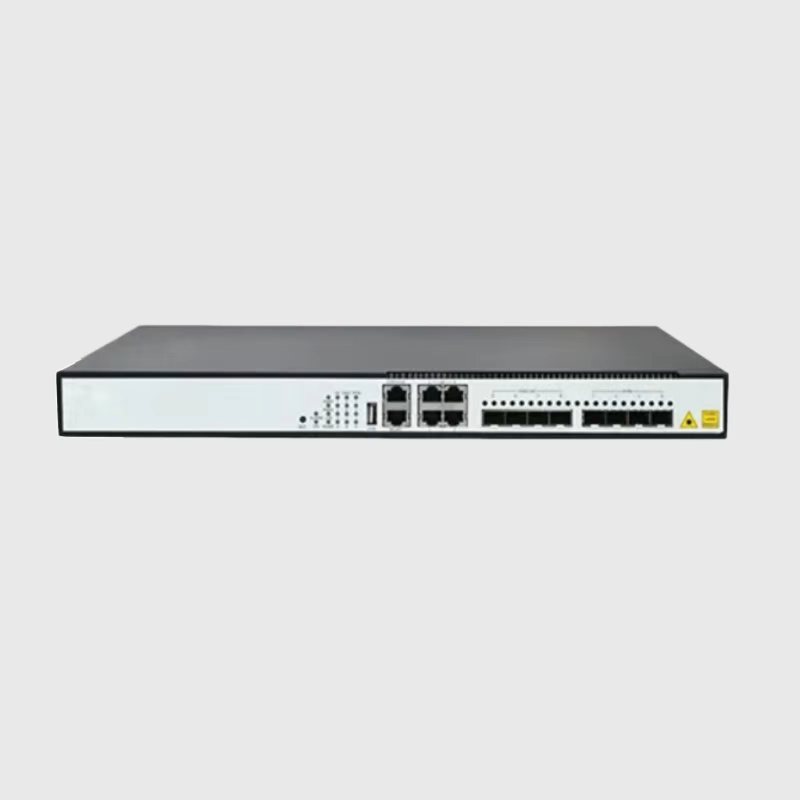

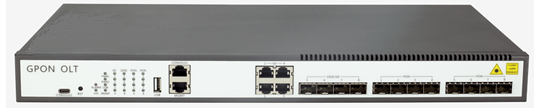

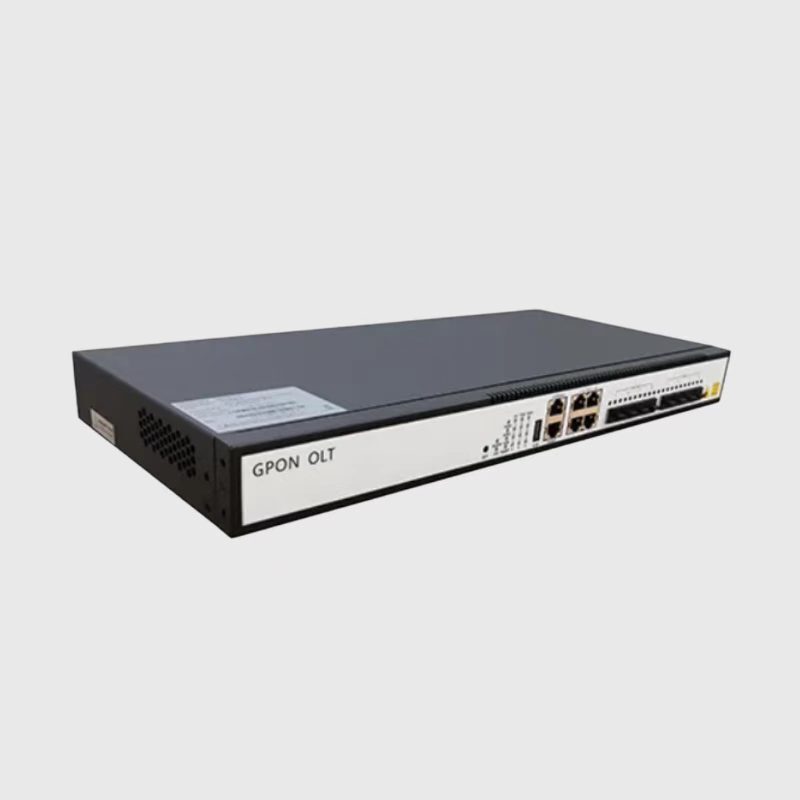

4 PORTS GPON OLT ----FY-G1004P Low Power Consumption PON Terminal | Easy Installation for Fiber to the FTTH/FTTB/ FTTH/HTTX applications
Product Overview
FY-G1004P-4 ports GPON OLT is a small-capacity cassette GPON OLT, with highly integrated, medium-capacity ,designed for carriers, ISPs, enterprises, and campus applications ,meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. It can be used with NGBNVIEW network management system so as to provide users with the comprehensive access and perfect solution.
FY-G1004P provides 4 * downlink GPON ports, 4*GE combo ports and 4*SFP/ SFP+ ports. The height is only 1U for easy installation and space saving. It is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
FG00-4P
FG00-8P
FG00-16P
- Main Feature
● Rich Layer 2/3 switching features and Flexible management methods
● Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP
● Support RIP、OSPF、BGP、ISIS and IPV6
● Safe DDOS and virus attack protection
● Support Power redundancy backup，Modular power supply
● Support power failure alalm
● Type C management interface
Attributes | FY-G1004P | ||
Exchange capacity | 104Gbps | ||
Packet forwarding rate | 77.376Mpps | ||
Memory and storage | memory：512MB, storage：32MB | ||
Management port | Console， Type C | ||
Port | 4*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 8*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 16*GPON Port，8*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
PON | Comply with ITU-TG.984/G.988 standard 60KM transmission distance 1:128 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade | ||
VLAN | Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ | ||
MAC | 16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit | ||
ring network protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection | ||
port control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding | ||
Port aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports | ||
Mirroring | Support port mirroring Support stream mirroring | ||
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. | ||
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR | ||
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection | ||
Layer 3 | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP | ||
System management | CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute | ||
Environment temperature | Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃ | ||
environment humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) | ||
environment friendly | China RoHs,、EEE | ||
weight | FG00-4P-04/08P:≤5kg FG00-4P-16P :≤6.5kg | ||

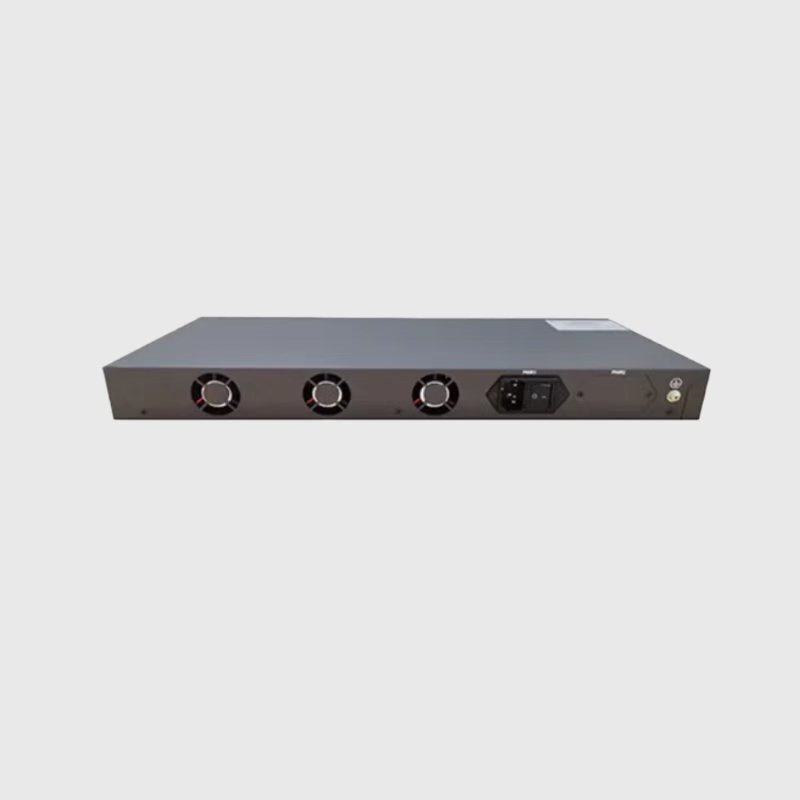

fan | Fixed fans（three fans） | ||
power | AC： 100～240V 47/63Hz； DC： 36V～75V； | ||
Power consumption | FG00-4P-04/08P: 65W FG00-4P-16P : 100W | ||
Dimensions (Width * height * depth) | FG00-4P-04/08P: 440mm*44mm*260mm FG00-4P-16P : 440mm*44mm*320mm | ||
Ordering Information
