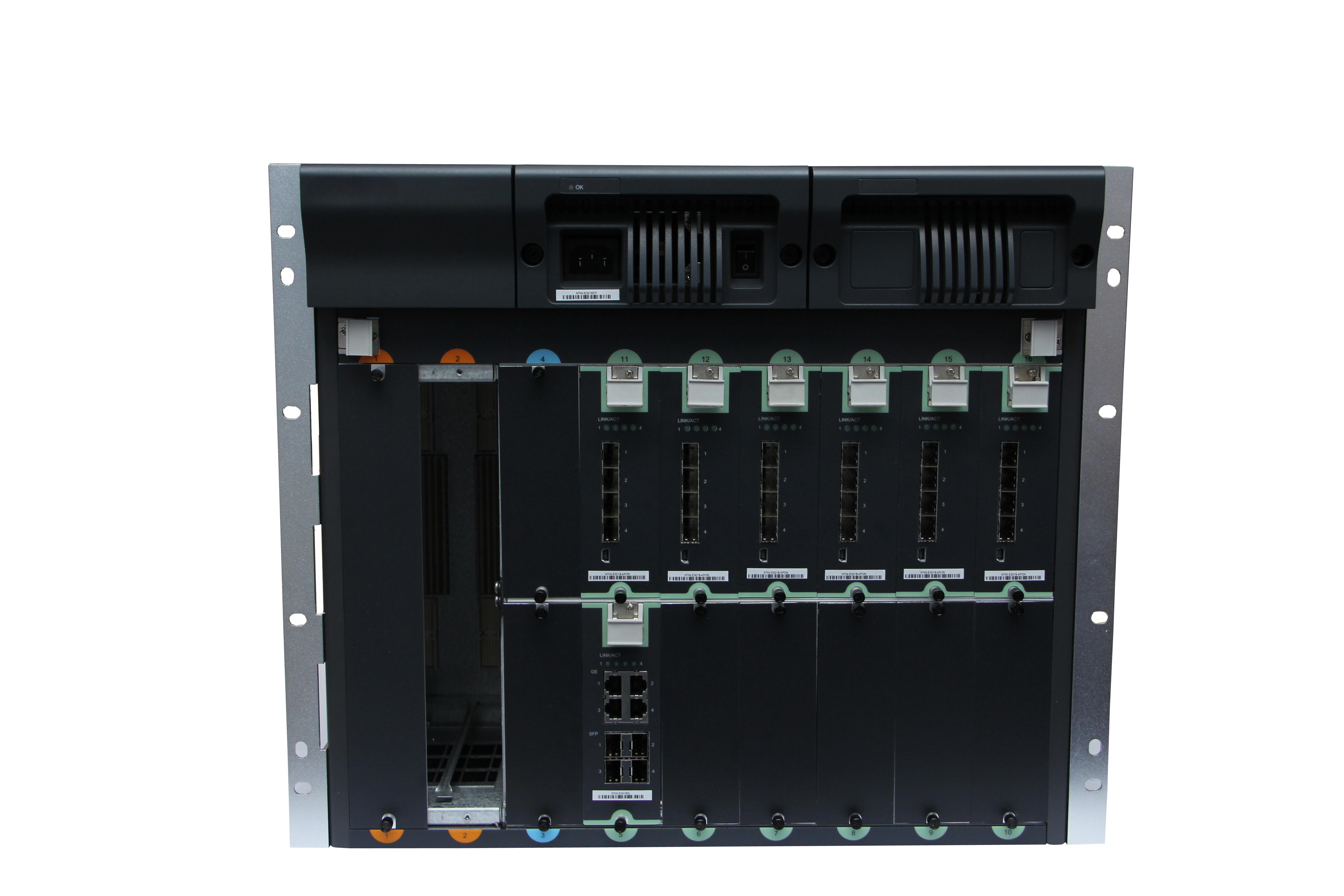

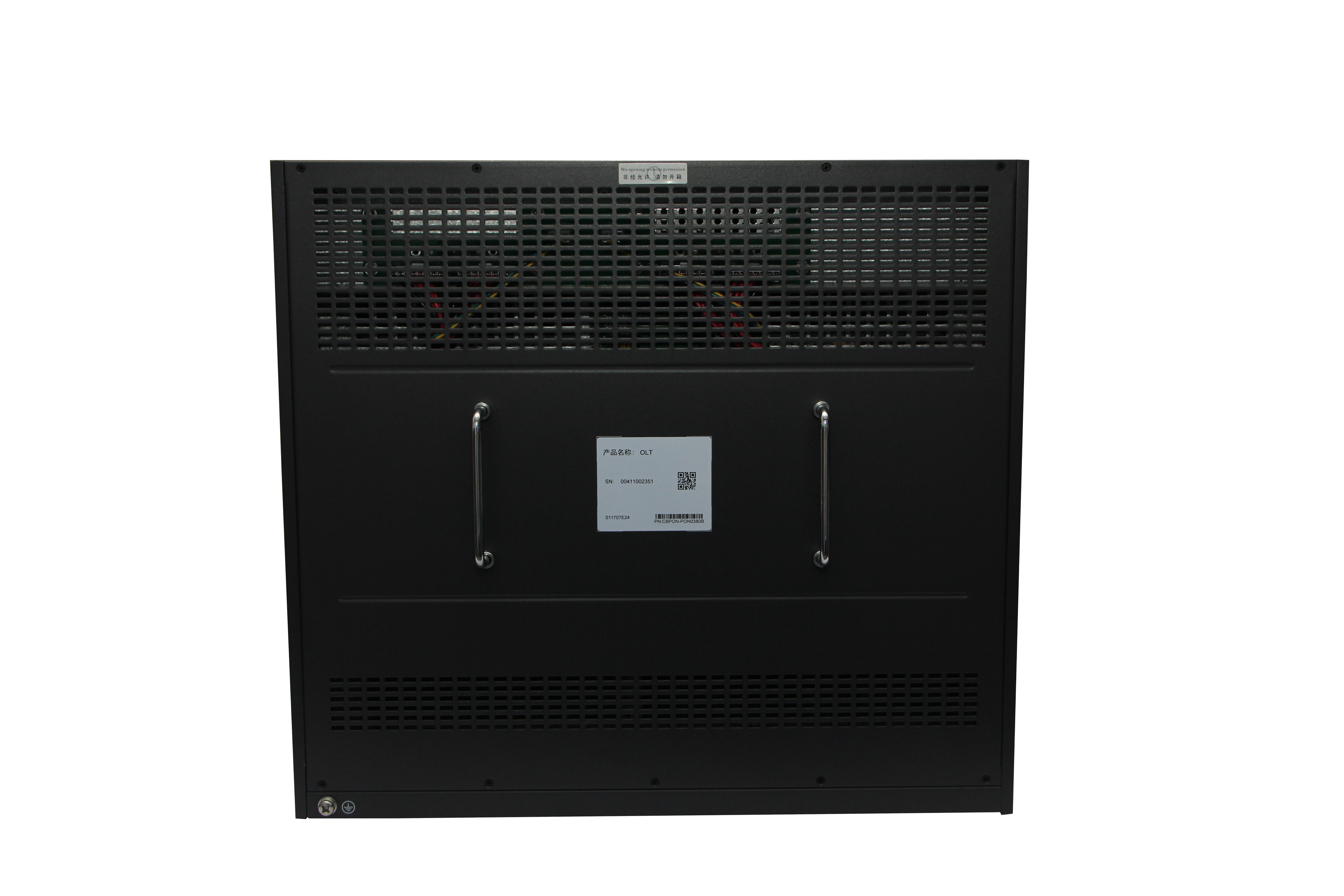

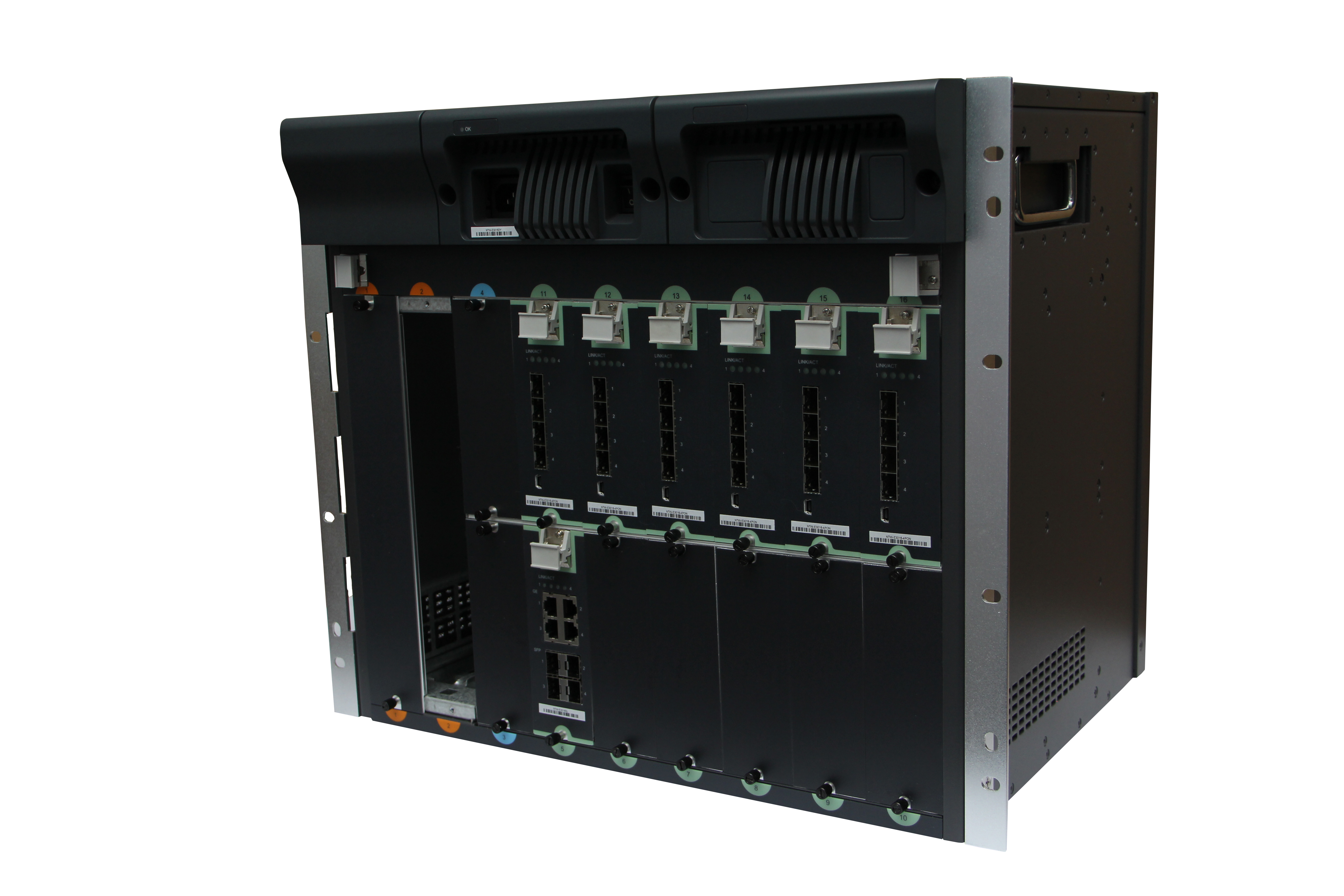

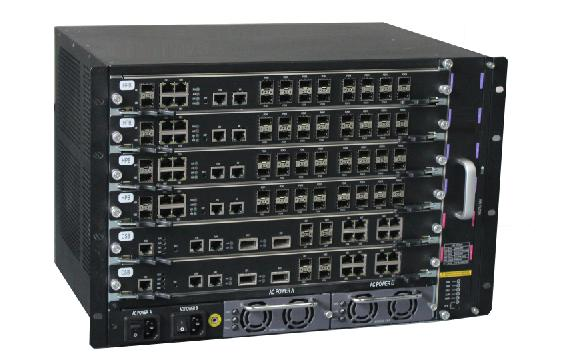

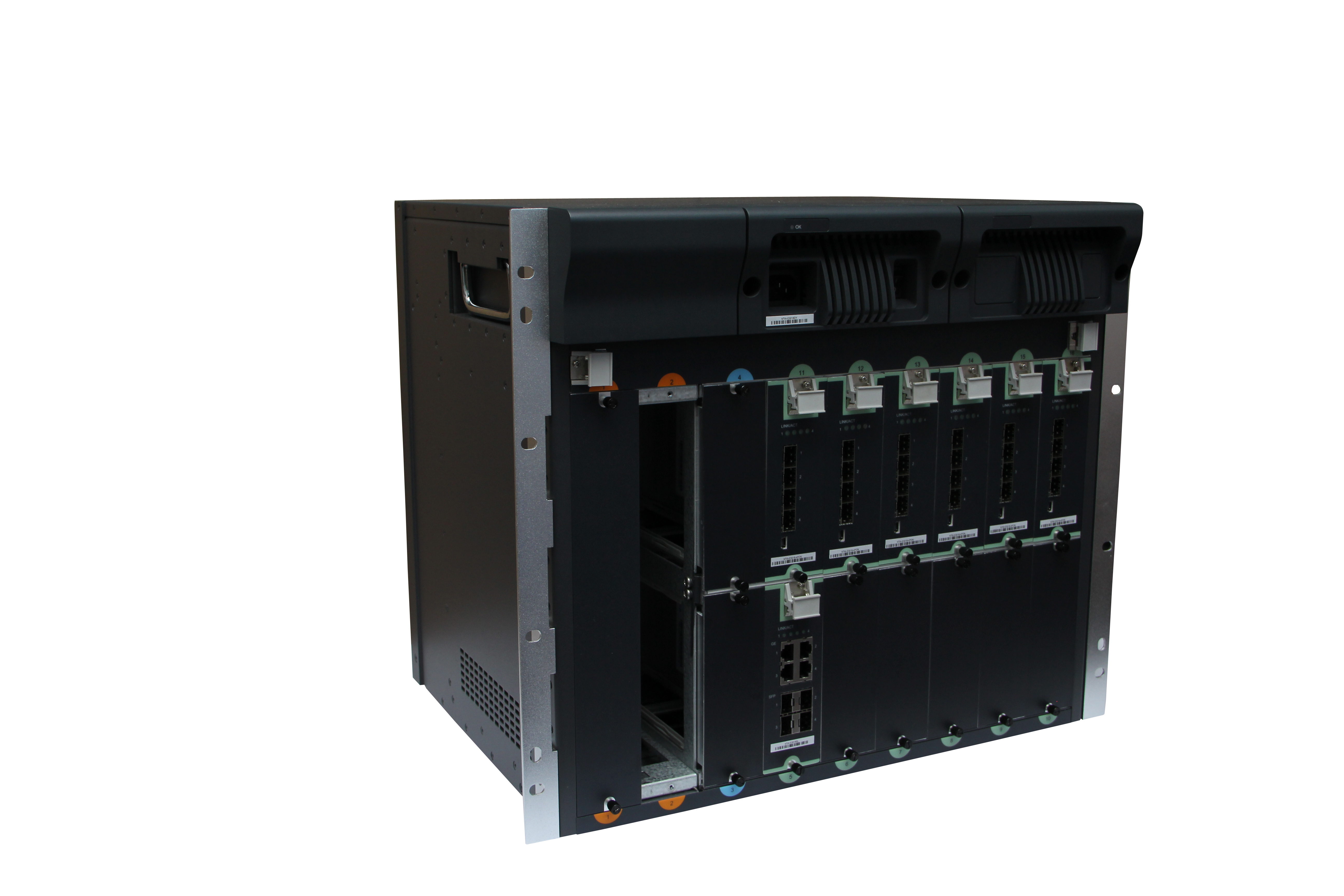

64 PON Ports EPON OLT Multi-ONU compatible EPON OLT---- FY-E064P

Product Overview

FY-E064P series 64 PON ports EPON OLT is one of serial high-density Telecom level Ethernet Passive Optical Network CO terminals.Compliance with IEEE802.3ah EPON international standard, YD/T 1475-2006 China Specification and CTC V2.1 Technical Requirements, it’s good inter-operation with most of all EPON ONU in industry by full OAM achievement. With 7U middle size, high performance, flexible extension, stable software and strong function, it specially suitable for FTTH (Fiber to the Home) etc applications, and meet the requirements of middle & large scale wideband access network, triple-play network etc projects.

• Product Feature




  ● Provide 64 PON Ports.


  ● Provide 2*10GE (XFP) and 12*GE (8*10/100/1000Base-T ports and 4*SFP) WAN Interfaces.


  ● Support 4096 ONUs connection (1:64 splitting ratio).


  ● Support L3 Ethernet switch, two-level switch architecture, 520Gbps main switch capability.


  ● Provide RS232 serial configuration interface, Ethernet in-band and out-band configuration methods.


  ● Support CLI configuration and SNMP network management.


  ● Support main/standby switching and protection of PON ports.


  ● Power consumption <300W.

•

•

•


Product Highlights

• Product Specification




  Hardware Specification
  Data Interfaces	Provide 64 PON ports.
  	Provide 2*10GE (XFP) and 12*GE (8*10/100/1000Base-T ethernet ports and 4*SFP) WAN Interfaces.
  Management Interfaces	Provide one 10/100Base-T RJ45 out-band management interface.
  	Out-band management interface via any 10GE or GE WAN interface.
  	Provide RS232 serial configuration port.
  PON Protection	Support protection of PON port + trunk fiber and “hand-in-hand”.
  Data Switch	Support L3 Ethernet switch, two-level switch architecture with no any blocking.
  	520Gbps switch capability on switch-control card.
  	128Gbps switch capability on EPON line card.
  Backplane	Dual-star 10Gbps full switch.
  	Provide 6 slots (2 slots for switch-control card and 4 slots for EPON line card).
  Main/standby Switching	Support mian/standby switching for switch-control card and power module.
  LED indications	RUN, ALM, PW1, PW2 indicate the status of system running, alarm and power supplies.
  	PON1 to PON16 indicate LINK and Active status of each PON port.
  	X1 and X2 indicate LINK and Active status of each 10GE WAN interface.
  	GE1 to GE12 indicate LINK and Active status of each GE WAN interface.
  Power Supply	-48V DC or 220V AC dual power supply with redundancy.
  	Power consumption <300W.
  Weight	23.5 Kg.
  Working Temperature	0-55℃.
  Size	450.99mm (Length) * 482.60mm (Width) * 311.15mm (Height).
  Software Specification
  EPON Standard	Compliance with IEEE802.3ah, YD/T 1475-2006 and CTC 2.1 standards.
  DBA	Support fixed bandwidth, guaranteed bandwidth, best-effort bandwidth and priority configurations.
  	Bandwidth granularity 64Kbps.
  Security	Support AES and triple churing encryption for PON network.
  	Support ONU MAC address binding and filtering.
  VLAN	Support 4096 VLANs on switching-control card and EPON line card separately.
  	Support VLAN adding, transparent, translation and deletion.
  	Support VLAN based on port, MAC, Ethernet protocol and IP sub-net.
  	Support VLAN stacking (QinQ).
  MAC Learning	Support 32K MAC address on switching-control card and EPON line card separately.
  	Line rate MAC address learning by hardware.
  	Support MAC limitation based on port, VLAN and link aggregation.
  STP	Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols.
  Multicast	Support IGMP Snooping and IGMP Proxy.
  	Support IGMP v1/v2.
  QoS	Support 802.1p priority queue scheduling.
  	Support SP、WRR and SP+WRR scheduling algorithms.
  ACL	Rule according to destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet type, IP priority, IP packet protocol type etc.
  	Packet filtering according to above rules.
  	Cos setting, IP priority setting, mirroring, rate limitation and port re-direction according to above rules.
  Flow Control	Support IEEE 802.3x duplex flow control.
  	Support port rate limitation.
  Link Aggregation	Support 8 link aggregation group, 4 member ports per group.
  Mirroring	Support port mirroring for WAN interfaces and PON ports.
  Log	Support log output mask according to alarm level.
  	Support log output to terminal, file and log server.
  Alarm	Support 4 levels alarms (Critical, Important, minor and warning).
  	Support 6 alarm types (communication, QoS, process failure, hardware and environment).
  	Support alarm output to terminal, log and SNMP network management server.
  Performance statistics	Performance sampling period from 1 to 30s.
  	Support 15 minutes performance statistics for WAN interfaces, PON ports and ONU UNI ports.
  Maintenance	Support OLT configuration saving, and restore to factory configuration.
  	Support OLT on-line upgrading.
  	Support ONU MAC auto binding and filtering, support off-line service configuration and automotive configuration deployment.
  	Support ONU remote upgrading and batch upgrading.
  Management	Support local or remote CLI configuration.
  	Support SNMP v1/v2c network management, support in-band and out-band network management.






•

•

•
