2U Chassis 32 Ports XG(S)PON OLT--FY-G032P Series

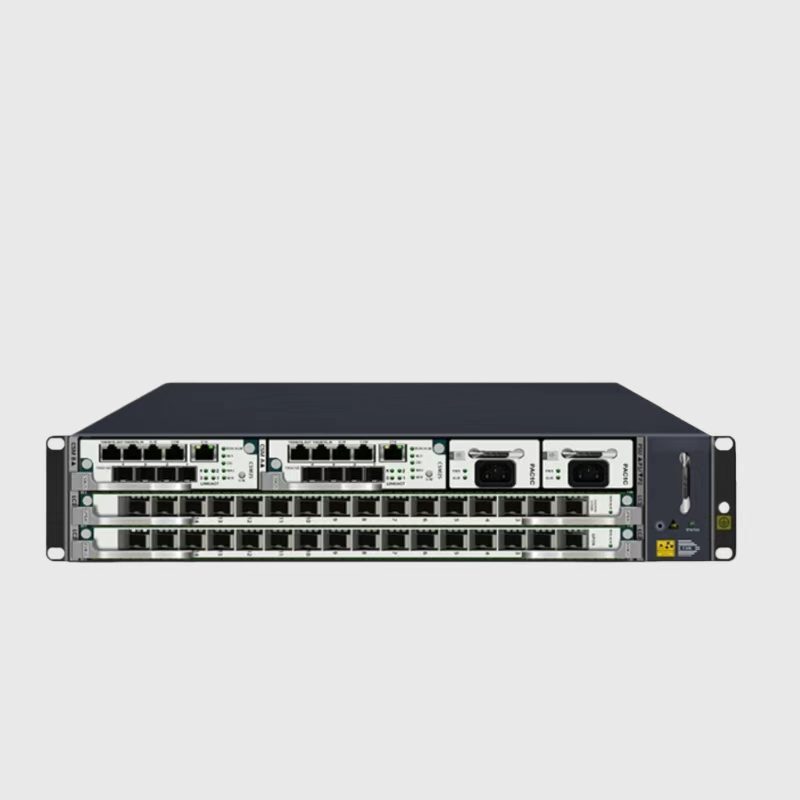

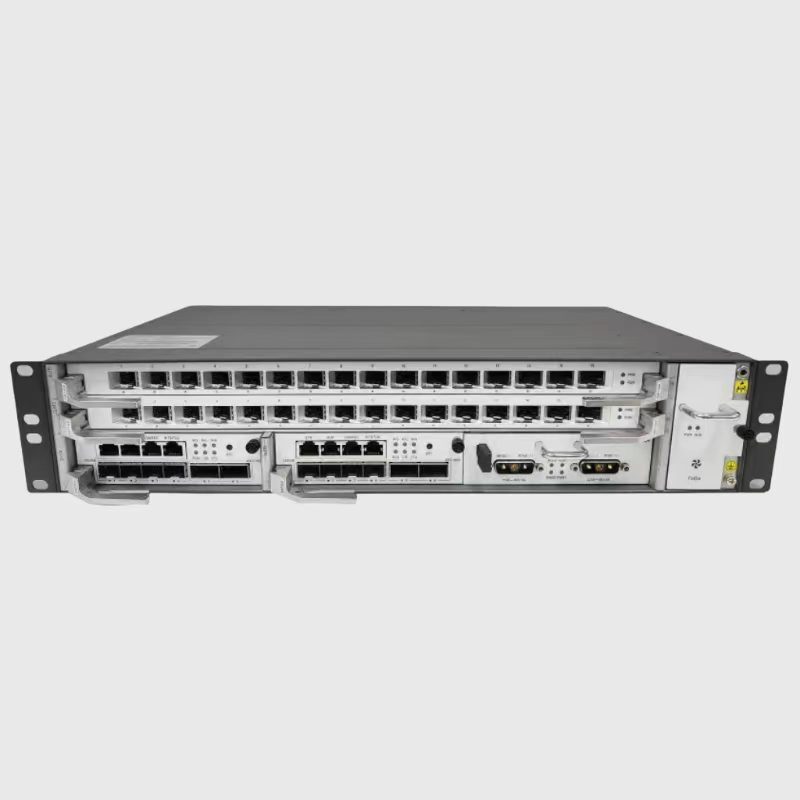

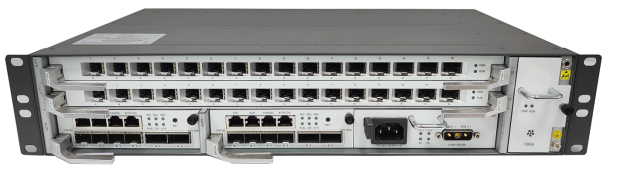

Product Picture

                                                           （DC+DC）

Product Overview

FY-G032P is a chassis-type XG(S)PON/GPON OLT device independently developed by our company, which can provide highly integrated and large-capacity integrated access for operators, ISPs, enterprises and park applications.

The product follows the technical requirements of ITU-T G.984/G.987/G.988/G.9807, and the software has complete functions, good openness, strong compatibility, and high reliability. Cooperating with GPON/XG-PON/XGS-PON optical network unit (ONU), it can be widely used in the construction of access network networks such as FTTH, government and enterprise park access, campus network access, etc., which provides users with broadband, voice, video, monitoring and other comprehensive service access.

This OLT adopts a compact frame design, supports GPON/XG-PON/XGS-PON mixed insertion, 2 main control slots and 2 user single board slots. Besides, it also supports a maximum of 32 GPON ports/32 XG(S)PONs, and each PON port can support a maximum of 128 optical network units (ONUs). The main control board of the system can provide 4 GE/10GE SFP+ interfaces and 2 100G QSFP28 ports.

Height is only 2U, easy to install and maintain, and save space for customers to the greatest extent, which adopts the industry's advanced technology. This device has efficient bandwidth utilization, Ethernet service support capabilities, and provides customers with reliable solutions. Support mixed networking of different types of ONUs, saving a lot of costs for operators.

• Product Highlight




  ●Fully complies with ITU-T G.984/G.987/G.988 /G.9807 standards


  ●GPON/XG-PON/XGS-PON multi-service unified platform facilitates subsequent network upgrades and technology evolution


  ●Dual main controllers, dual power supply redundancy, PON backbone optical fiber protection, to ensure business continuity and stability


  ●Modular design of the whole machine, boards, power supplies and fans all support hot swap


  ●Abundant Layer 2 and Layer 3 switching features and flexible management


  ●Powerful QoS function guarantees service quality


  ●Unified network management platform


  ●Standard OMCI remote deployment and management of user terminal







  Device Brief Information

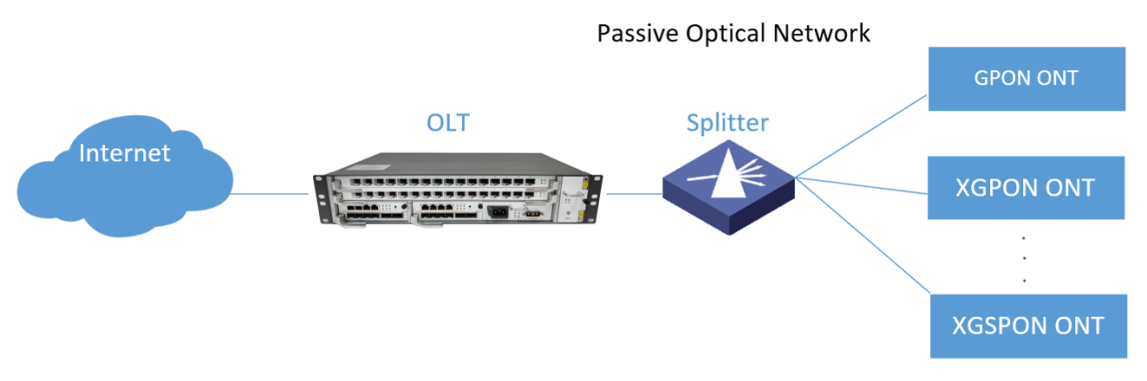

  GPON/XGPON System reference model

  The GPON/XGPON system usually consists of the OLT at the office side, the ONU and the ODN at the user side, and adopts a point-to-multipoint network structure. The ODN consists of single-mode optical fibers and passive optical devices such as optical splitters and optical connectors. It provides the optical transmission medium for the physical connection between the OLT and ONU.

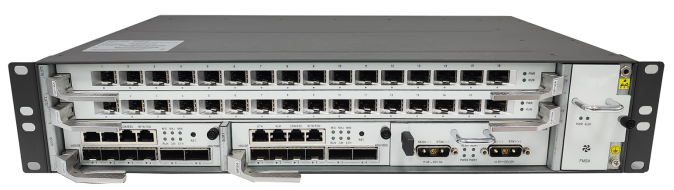

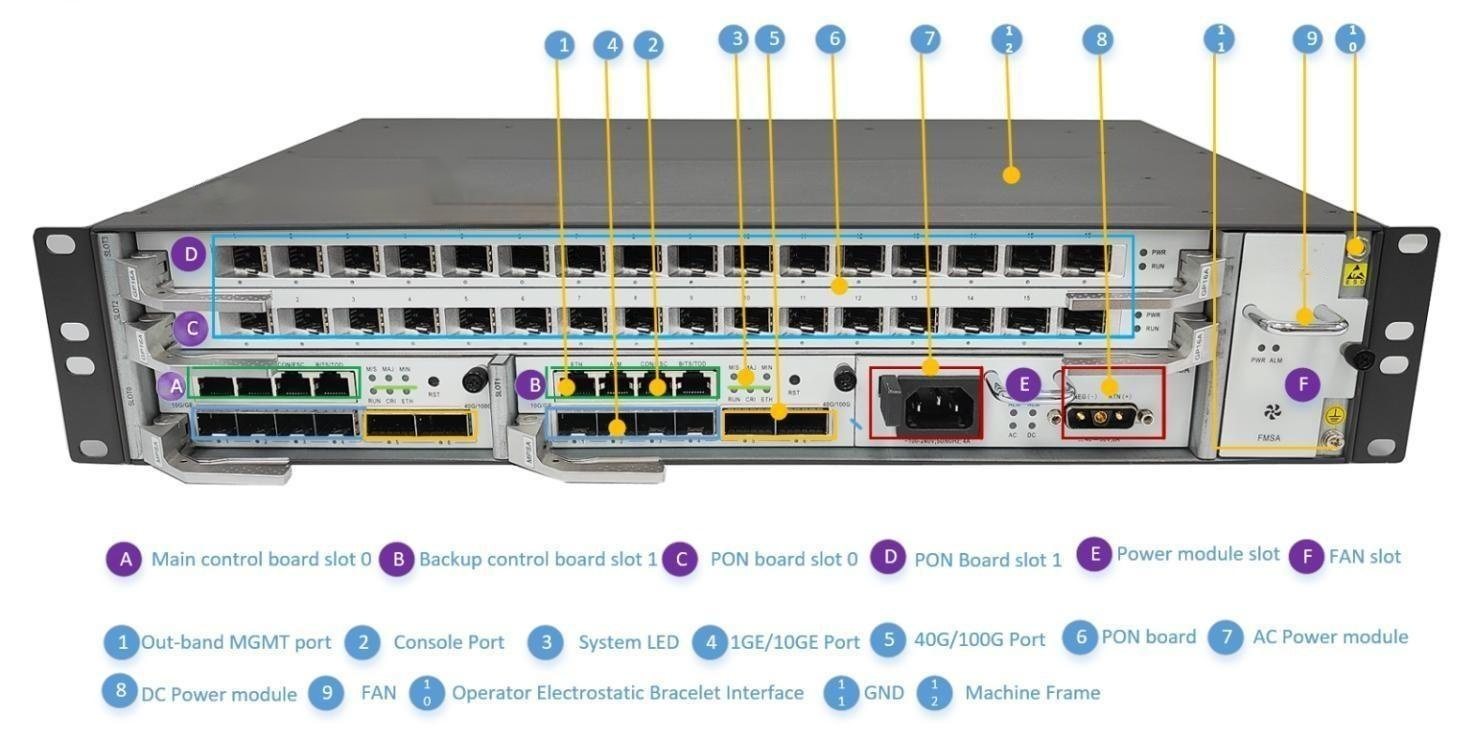

  Front View of FY-G032P






  Label	Connector Type	Connector Description
  100G 1-4	QSFP28	Connect to external uplink equipment
  1G/10G 1-8	SFP/SFP+	Connect to external uplink equipment
  PON 1-16	SFP+	GPON, XGS-PON COMBO service port
  ETH(MGMT)	RJ45	The out-band management port
  CONSOLE	RJ45	The Software debug port
  ALM	RJ45	4*external alarm input
  TOD	RJ45	1*1PPS+TOD input




•

•

•


Operating Status LEDs

The operation status of FY5200 can be determined by using the front LED. The panel LED indicator will display the status of each interface. The meaning of LED is shown in the following table.

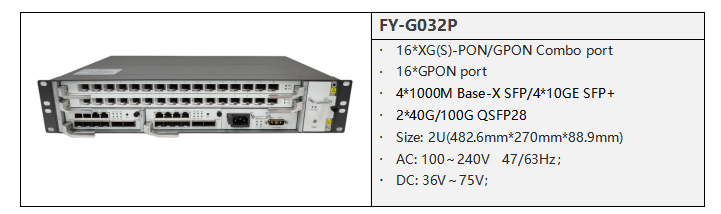

• Hardware Specification

  Attributes	FY-G032P
  Interface	MPSA: main control board, 4*1000M Base-X SFP/4*10GE SFP+, 2*40G/100G QSFP28 GP16A: 16-port GPON line card XS16A: 16-port XG/XGS PON line card CS16A: 16-port GPON/XG/XGSPON combo line card
  Exchange Capacity	1280Gbps
  Forwarding Rate	952.32Mpps
  Memory and Storage	DRAM：2GB, Flash：8GB (Control board) DRAM：2GB, Flash：8GB (PON board)
  Management Port	Console port, debugging network port
  Standard	Conform to ITU-TG.984/T G.987/G.988 standard
  PON	Wavelength: GPON: 1310nm (upstream) 1490 nm (downstream),               XGSPON: 1270nm (upstream) 1577nm (downstream);
  	Line Speed: GPON downlink 2.5Gbps, uplink 1.25 Gbps     XGPON downlink 10Gbps, uplink 2.5Gbps;      XGSPON downlink 10Gbps, uplink 10Gbps;
  	PON port total 1: 256 Maximum spectral ratio, GPON 1: 128, XGPON/XGSPON 1: 128;
  	Flexibly compatible with any brand of ONT  Perform batch software upgrades on ONUs
  Environment Temperature	Operating temperature: -10 ℃～55 ℃ Storage temperature: -40 ℃ ~ 70 ℃
  Environment Humidity	Relative Humidity: 5%~95%, non-condensing
  Weight	12 KG
  Fan	Modular fans supply（1）
  Power Supply	AC: 100～240V 47/63Hz; DC: 48V; Modular power supply, optional AC+DC, DC+DC
  Power Consumption	280W
  Dimensions (W*D*H)	482.6mm*270mm*88.9mm

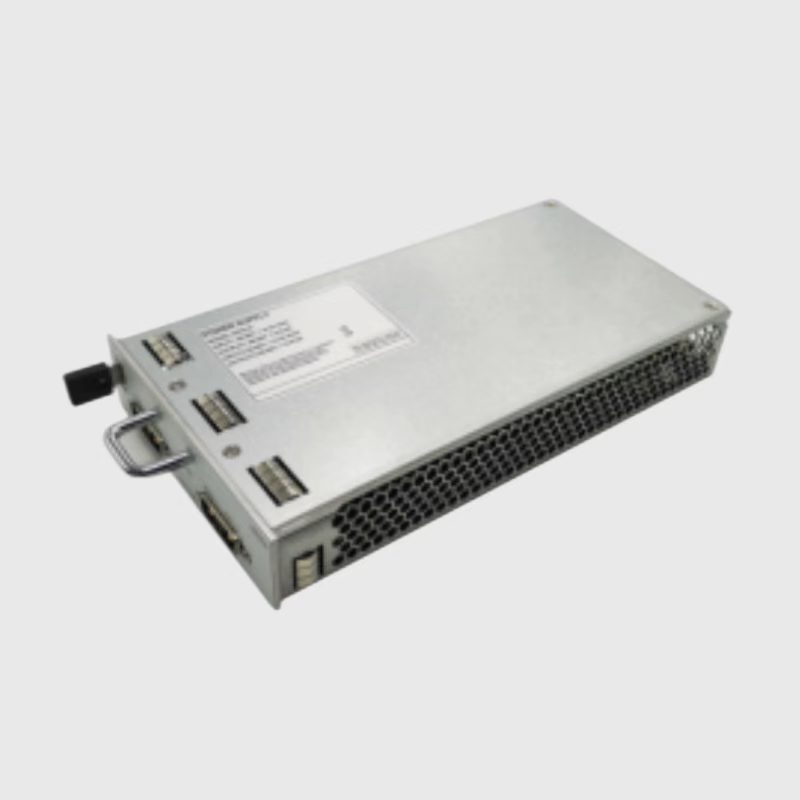

  Plug-In Units

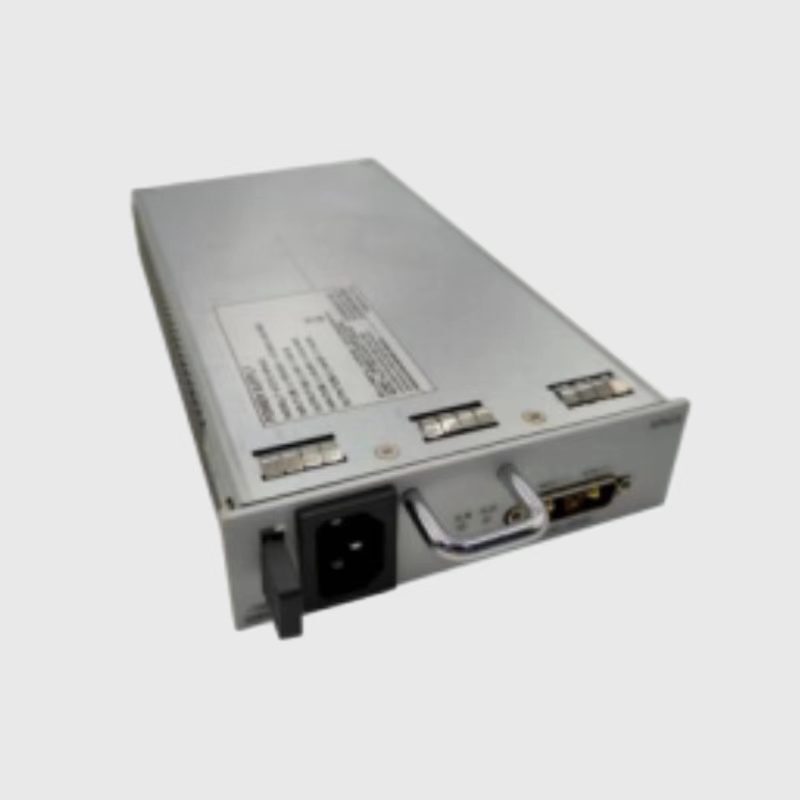

  The OLT has a Power Supply Unit (PSU) slot on the front panel. A power module is included AC units and DC units, or a power module is configured with DC units and DC units. Different types of power modules can be equipped with the OLT. The following table describes the power module types.

  The power supply unit (PSU) feeds the proper power voltage to the base board of OLT. PSUs are possible to be mounted into front of the chassis and it can be DC+DC or DC+AC type of PSU. Therefore, you need to decide to choose proper power supply unit according to installation environment.

  The power connector (AC and DC type) for main power supply is located on the front panel of the PSU.

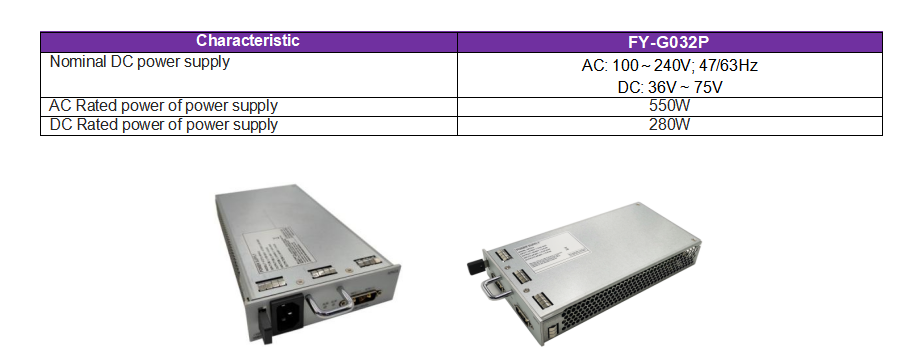

  The below shows the electrical characteristics of the OLT：

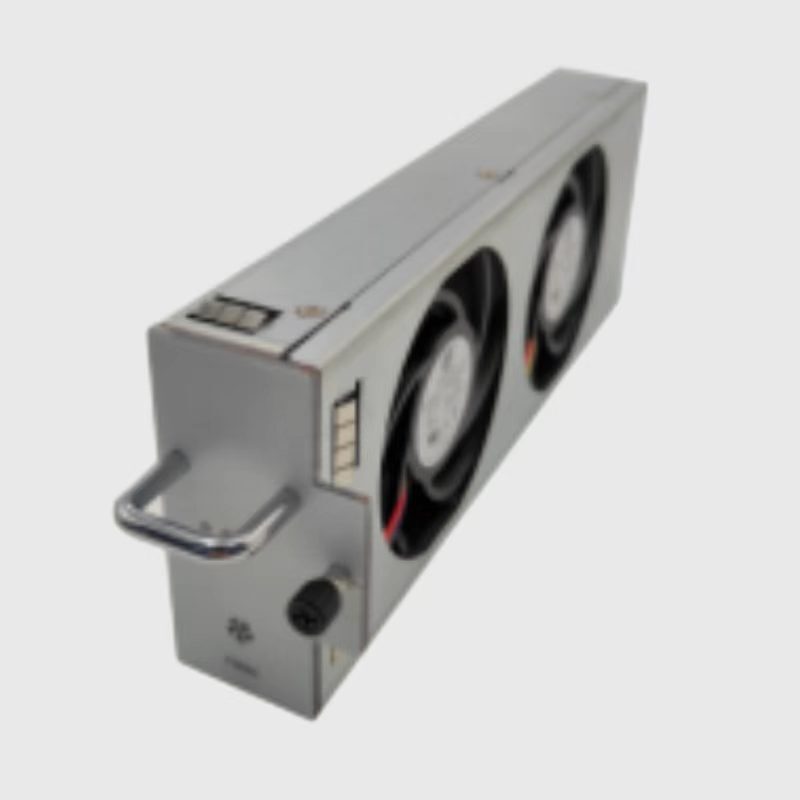

  FAN Unit

  The OLT provides 1 fan unit slots on the side panel. This plug-in unit internally consists of 2 fans. User can insert fan unit to a fan slot by slowly adjusting them to fit into the slot guid-ance. The air flows from the front side inlet to the rear side outlet.








•

•

•


Software Specification

Connector Specifications

The OLT provides standardized interfaces, thus facilitating rapid and trouble-free integration into the existing network infrastructures.

PON Interfaces
The OLT XS16A board contains 16 XGS-COMBO PON interface ports and GP16A board contains 16 GPON interface ports  for SFP+ modules below table is available .

XGS COMBO PON module list.

The OLT optical interface ports for SFP/SFP+ modules and below table is available SFP/SFP+ module list.

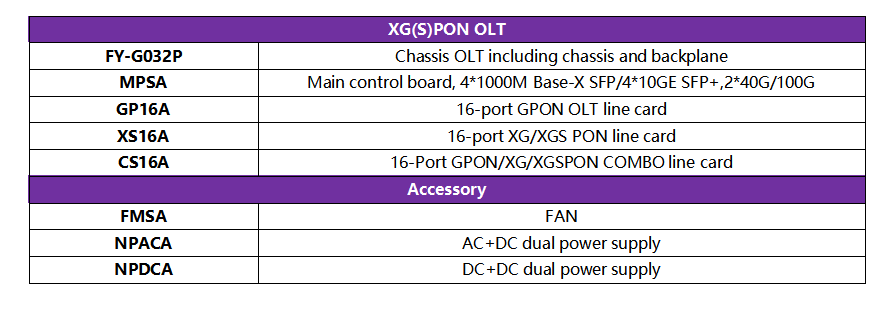

• Purchase Info



•

•

•
