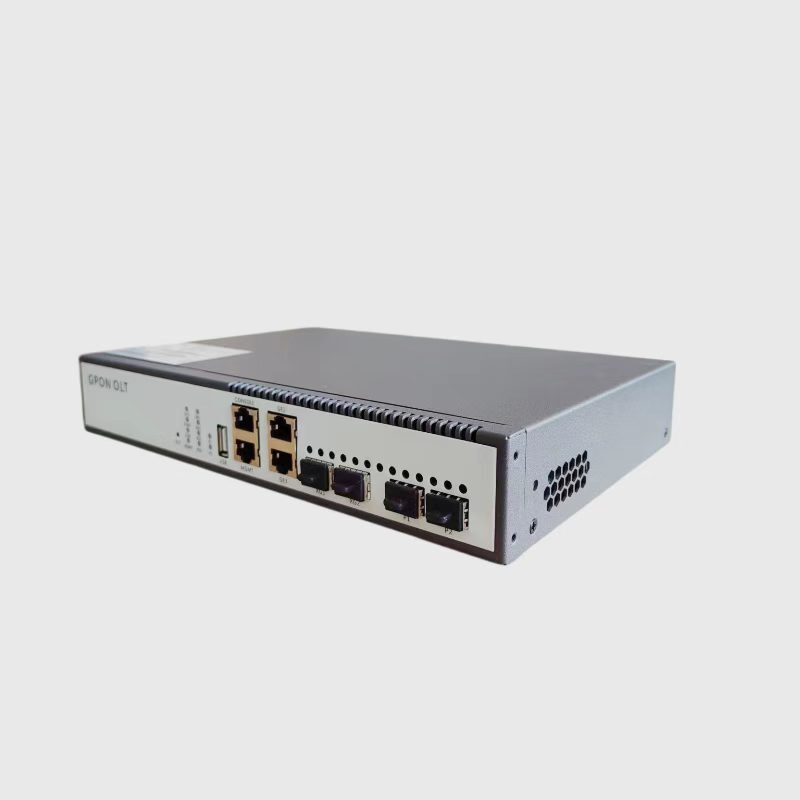

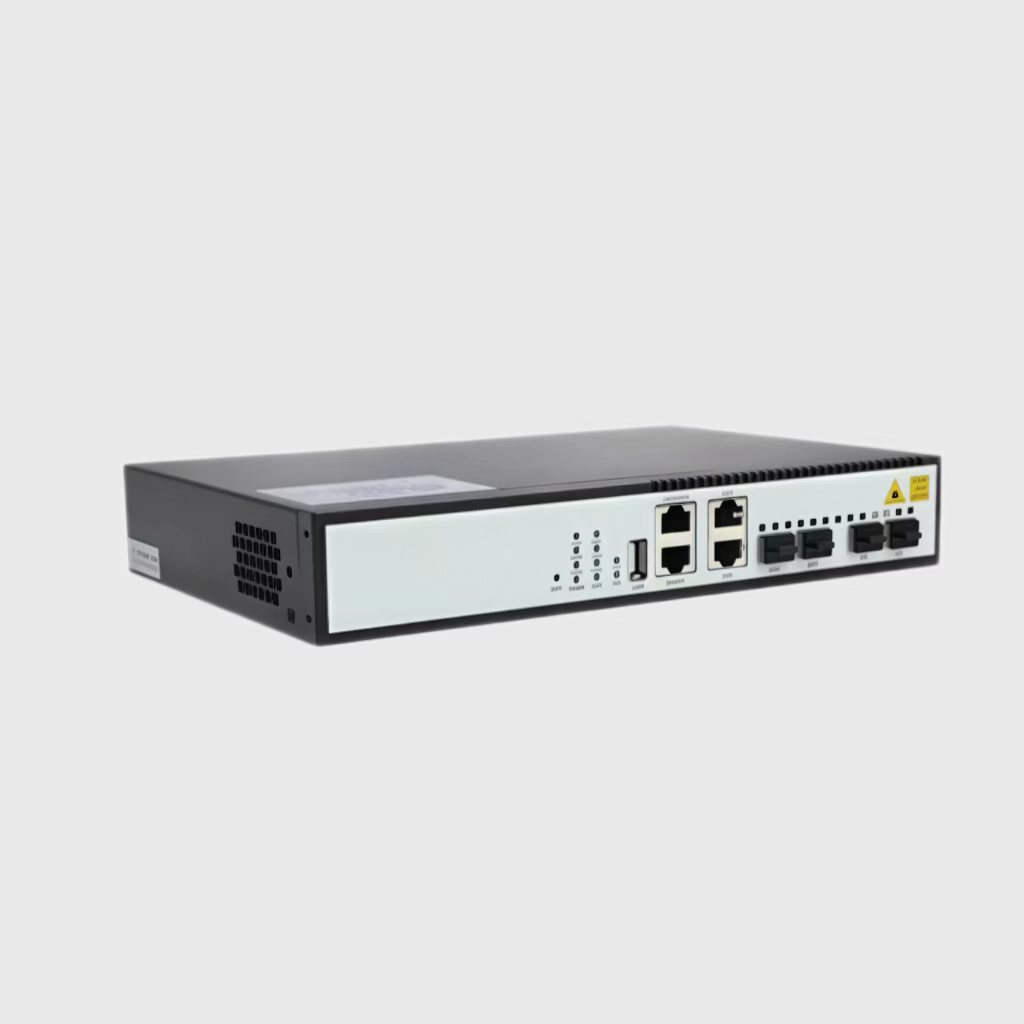

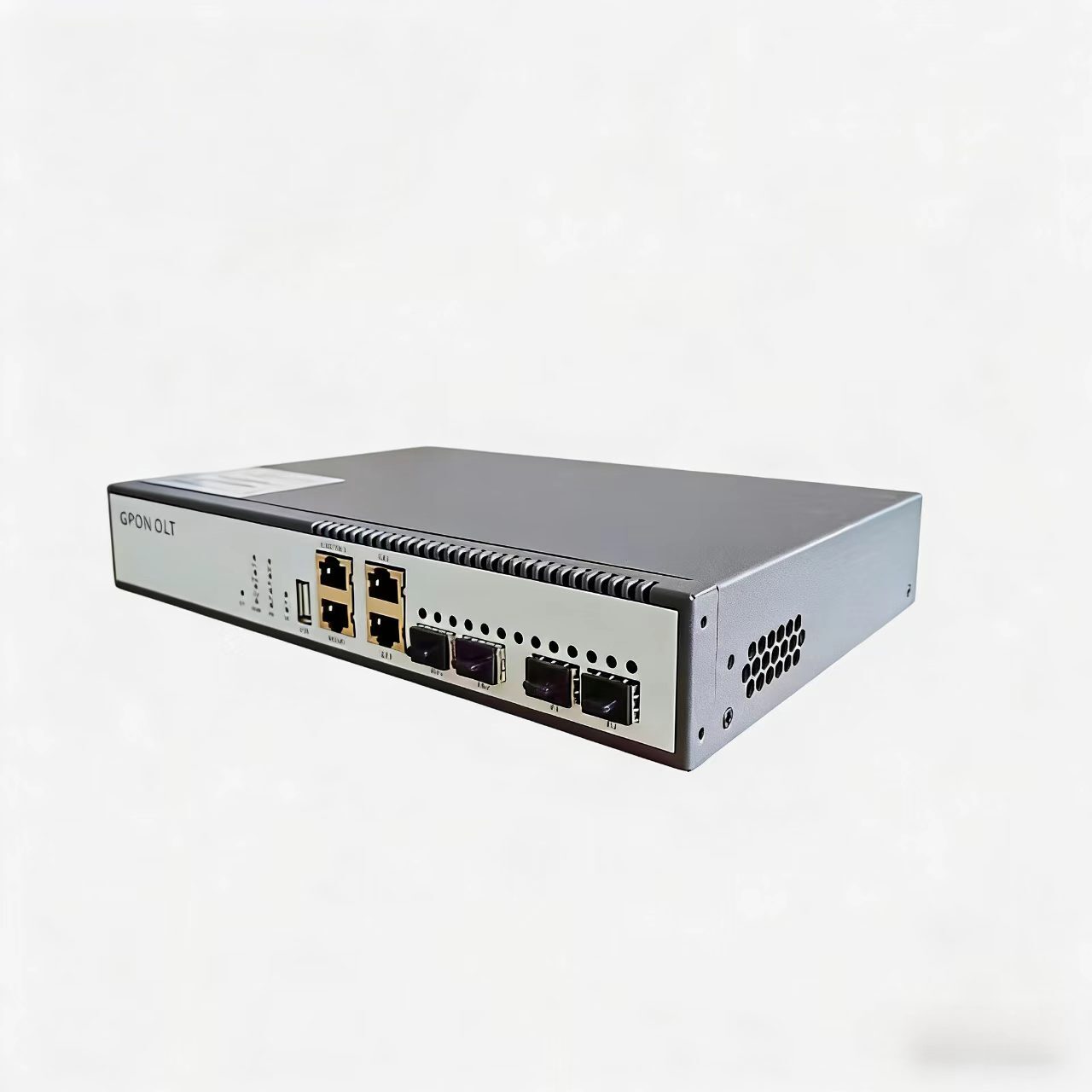

2-Port GPON OLT Line Terminal | Support ONU Auto-Discovery & Remote Management | Gigabit Fiber Optic Solution for Network Engineers ----FY-G1002P
Product Overview
FY-G1002P is a small-capacity cassette GPON OLT, with highly integrated, medium-capacity ,designed for carriers, ISPs, enterprises, and campus applications ,meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode.FY-G1002P can be used with NGBNVIEW network management system so as to provide users with the comprehensive access and perfect solution.
FY-G1002P provides 2 * downlink GPON port, 2*GE combo port and 2* 10G SFP+ port. The height is only 1U for easy installation and space saving. FY-G1002P is suitable for Broadca st three in one, video surveillance network, enterprise LAN, Internet of Things, etc.

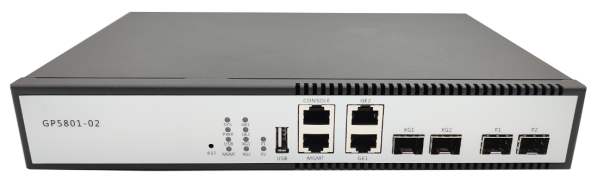

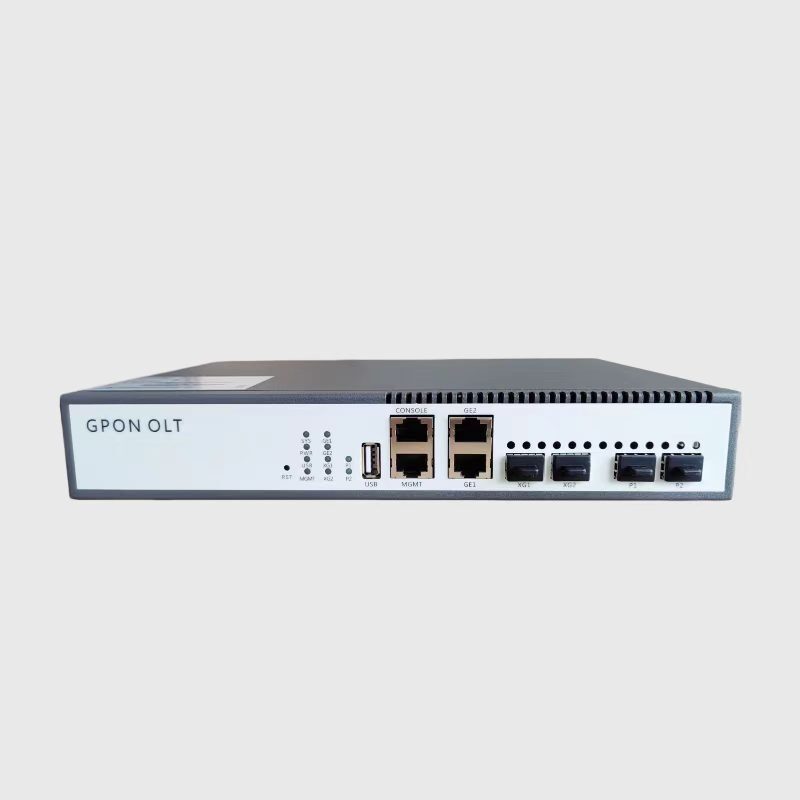

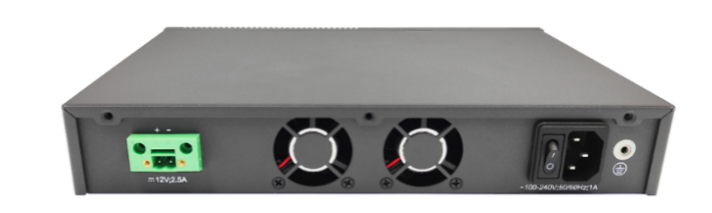

- Product Interface
Key Features
Easy to install and maintain
SFP/SFP+ uplink port
Small size, convenient and flexible
Comply with ITU-T 984.x standard
Tcont DBA, Gemport, FEC
Transmission distance up to 20KM
Support data encryption, multicast, port VLAN, separation, etc.
Support ONT automatic discovery/link detection/software remote upgrade
Support VLAN division and user separation
Support power failure alarm function
2K Mac address
Support 4k VLANs
Support VLAN tag/Un-tag, VLAN transparent transmission
Support port isolation
Support Telnet, CLI, WEB
Port status monitoring and configuration management
Online ONT configuration and management
Support storm control based on port
- Hardware Specification
Attributes

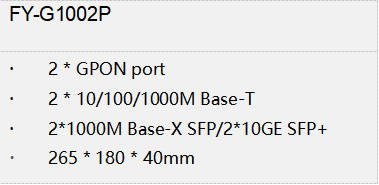

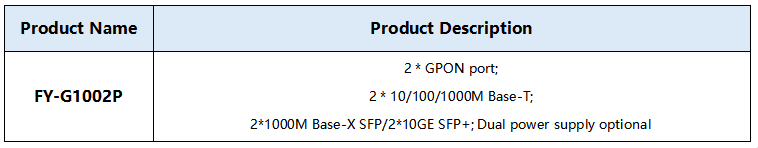

FY-G1002P
Interface
2 * GPON port; 2 * 10/100/1000M Base-T;
2*1000M Base-X SFP/2*10GE SFP+; Dual power supply optional
Exchange Capacity
51.5Gbps
Packet Forwarding Rate
59.7Mpps
Memory and Storage
Memory: 32MB; Storage: 512MB
Management Port
1*Console Port; 1*Management Port
PON
Complies with ITU-T G.984/G.988 standards
20 km physical differential distance, 60 km logical distance
1:128 maximum splitting ratio
Standard OMCI management features
Flexibly compatible with any brand of ONT
Supports batch software upgrades for ONUs
Weight
≤2kg
Fan
2*Fixed Fans

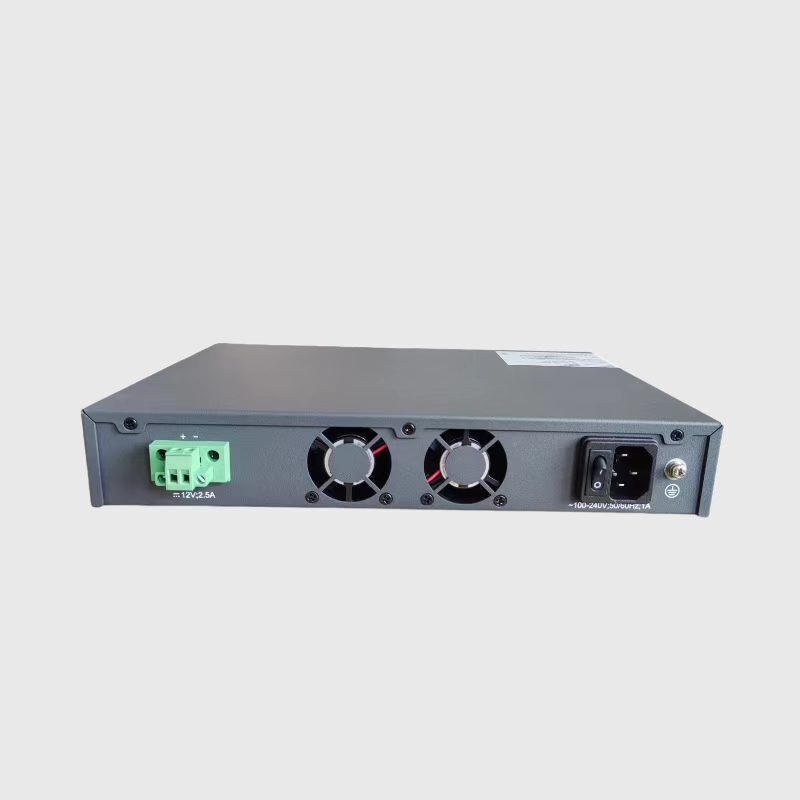

Power
AC: 100～240V, 47/63Hz；
DC: 12V
Power Consumption
≤30W
Dimensions
(W *D *H)
265mm*180mm*40mm
Environment Temperature
Working Temperature：-10℃～55℃
Storge Temperature：-40℃～70℃
Environment Humidity
Operating Humidity: 10%～95% (non-condensing)
Storage Humidity: 10%～95% (non-condensing)
Environment Friendly
China RoHs,、EEE
Software Specification
Parameters | FY-G1002P |
VLAN | Supports 4K VLAN 802.1Q Supports dual-tag VLAN functionality, including static QinQ based on ports & flexible QinQ |
MAC | Supports 16K MAC address table entries Supports static MAC address configuration Supports black-hole MAC address filtering Supports port-based MAC address limits |
Ring Network Protocol | Supports STP/RSTP/MSTP Supports ERPS Ethernet Ring Protection Switching Supports Loopback-detection port loopback detection |
Port Control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
Port Aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
Mirroring | Mirroring |
ACL | Supports standard and extended ACLs Supports time-based (Time Range) ACL policies Provides flow classification and definition based on IP packet header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, and protocol type |
Qos | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function Support queue scheduling algorithms such as SP/WRR/SP+WRR |
Safety | Support user hierarchical management and password protection Supports IEEE 802.1X authentication/Centralized MAC address authentication Support Radius & TACACS+ authentication Support MAC address learning limit Support blackhole MAC functionality Supports SSH 2.0, providing a secure encrypted channel for user login Supports SNMP v3 encrypted management Supports port isolation, with hardware isolation of messages between ports Supports broadcast message rate limiting Supports IP Source Guard, automatically creating an IP+MAC+port+VLAN binding table, and manual binding of table entries Supports automatic suppression of ARP flooding attacks and ARP spoofing protection Supports protection against various CPU-targeted DoS attacks and virus attacks at the control plane |
Layer 3 Routing | Supports ARP learning and aging Supports creating Layer 3 VLAN interfaces and configuring static IPv4/IPv6 addresses Supports static route configuration Supports RIP/OSPF protocol functions Supports VRRP protocol functions |
System Management | Supports Console/Telnet/SSH 2.0 command-line configuration Supports configuration management via web browser Supports FTP and TFTP file upload/download management Supports SNMP v1/v2/v3 Supports RMON Supports SNTP clock synchronization Supports system operation logs Supports LLDP (Link Layer Discovery Protocol) for neighbor device discovery Supports 802.3ah Ethernet OAM (Operations, Administration, and Maintenance) Supports RFC 3164 Syslog functionality Supports Ping and Traceroute |
Our Company
Company Profile
Shenzhen Feituo Technology Technology Co., Ltd. was established in 2016 by senior technicians engaged in the optical communication industry and have more than ten years of experience in PON R&D and production. Specializing in providing customers with XGS-PON/XGPON/GPON/EPON ONU and OLT optical communication products R&D, production, sales and technical OEM/ODM services, the main products are: XGS-PON/XGPON/GPON/EPON ONU and OLT, optical fiber transceivers, optical fiber switches, voice gateways, wireless APs, optical fiber patch cords, optical splitters and other passive optical accessories.
Company advantages
The company has many excellent industry senior talents, mature market channels and good business reputation, since our products entered the market, with reliable product quality, reasonable market price, high-quality technical services quickly opened the market, received good feedback from customers, business has spread to Southeast Asia, Europe, America more than 30 countries and regions around the world.
Technology
We provide professional technicians to support customers' pre-sales and after-sales services, one-on-one guidance for customers to debug the computer room networking system, and can debug equipment remotely or on-site for customers, so that customer projects can be carried out smoothly.
service
It can provide one-stop service for passive optical network systems, provide professional consultation and answers to questions about GPON/EPON networking solutions for system integrators, assist customers in optimizing system networking solutions, save procurement time and procurement costs for customers, and get the best quality solutions for engineering projects.
Quality policy
With "perseverance in service, excellent quality and highly competitive cost, to meet customer needs" as its own quality policy, we always adhere to providing customers with high-quality products and services, and strive to obtain 100% customer satisfaction, and become a high-quality supplier worthy of customer trust and choice.
Quality control
The company has a complete testing system, and every equipment that leaves the factory has been tested and inspected. From the incoming material, production, testing, packaging and other processes of the product are quality control, the quality of the factory product is guaranteed to the greatest extent.
Our company's after-sales service has a dedicated line, and the supplier promises to provide free warranty within one year from the date of delivery due to product quality problems (not damage caused by improper use by users), lifelong maintenance (only maintenance costs are charged).
Company evaluation
Delivery Just-in-Time: 100%
Customer satisfaction > 95 points (quarterly)
Product Wholesale Pass-Through Rate>98% (Month)
Customer complaint rate<1% (month)
Corporate culture
Integrity-based, innovation as the soul, step by step, to build a reputable brand, think about what customers think, constantly surpass, and strive for perfection.
With the idea of "the next process is the user", we pay attention to professional ethics and professional responsibility, build a corporate image, create high-quality projects, be responsible for the project, and satisfy customers.
Factory Introduction
Our Certifications
The company focuses on the research, development, production, and sales of optical communication equipment. With years of experience in the optical communication field, it has a complete manufacturing system and quality control capabilities.
The company strictly adheres to national and international standards, fully obtaining China Compulsory Certification (3C) and other authoritative international certifications such as UL. Its product performance, safety indicators, electromagnetic compatibility, and environmental protection meet industry-leading levels, capable of satisfying market access and large-scale application needs both domestically and internationally.
Leveraging comprehensive qualification certifications, a mature supply chain system, and rigorous quality control standards, the company provides stable and reliable optical communication equipment for data centers, communication operators, and industrial communication sectors, earning widespread recognition from clients at home and abroad through compliant strength and quality assurance.
Shipping & Logistics
Global Shipping & Logistics
We have rich experience in export and global delivery. We work with reliable logistics partners to provide fast, safe and cost-effective shipping solutions worldwide, including sea freight, air freight and international express.
Before shipment, all optical communication products will be professionally packed and fully tested. We accept FOB, CIF, CFR, DDP and other delivery terms, ensuring your goods arrive on time and in good condition.
How to Pay
Frequently Asked Questions (FAQ)
Q: What is the minimum order quantity (MOQ), and do you support small batch trial production?
A: The minimum order quantity for regular products is 500 units; for new customers, the trial production minimum order quantity can be negotiated to help you validate the market, and large-scale production can be adjusted according to the order size, flexibly adapting to your needs.
Q: Is it possible to customize product features, appearance, and specifications?
A: Sure. The appearance can be customized with your logo, color scheme, and packaging; functions and parameters can be adjusted according to your application scenarios (such as telecommunications, data centers, industrial communications). Whether it is hardware configuration or software debugging, it can be customized as needed to ensure the product fits your usage requirements.
Q: Production capacity and delivery cycle?
A: The factory has a monthly production capacity of 100,000 units. The delivery time for regular OEM orders is 7-15 working days. For large orders, production can be scheduled in advance, and a delivery guarantee agreement can be signed to ensure on-time delivery.
Q: Quality control standards and inspection procedures?
A: We follow the ISO9001 quality management system, perform full inspection on incoming raw materials, set up patrol inspections and semi-finished product tests during the production process, and complete comprehensive tests on finished products before shipment, including optical performance, high and low temperature, aging, and compatibility. Test reports are provided for each batch of orders to ensure a product pass rate of over 99.8% and compliance with industry standards.
Q: What is the product warranty period and after-sales policy?
A: All products come with a 1-2 year warranty (depending on the product type). Products that are not damaged by human factors within the warranty period can be repaired or replaced for free.
Q: What support is available for long-term cooperation?
A: Long-term cooperative customers can enjoy benefits such as priority scheduling, price discounts, free technical upgrades, and fast-track after-sales service. We will also provide product iteration suggestions based on market trends to help you continuously enhance your market competitiveness.
