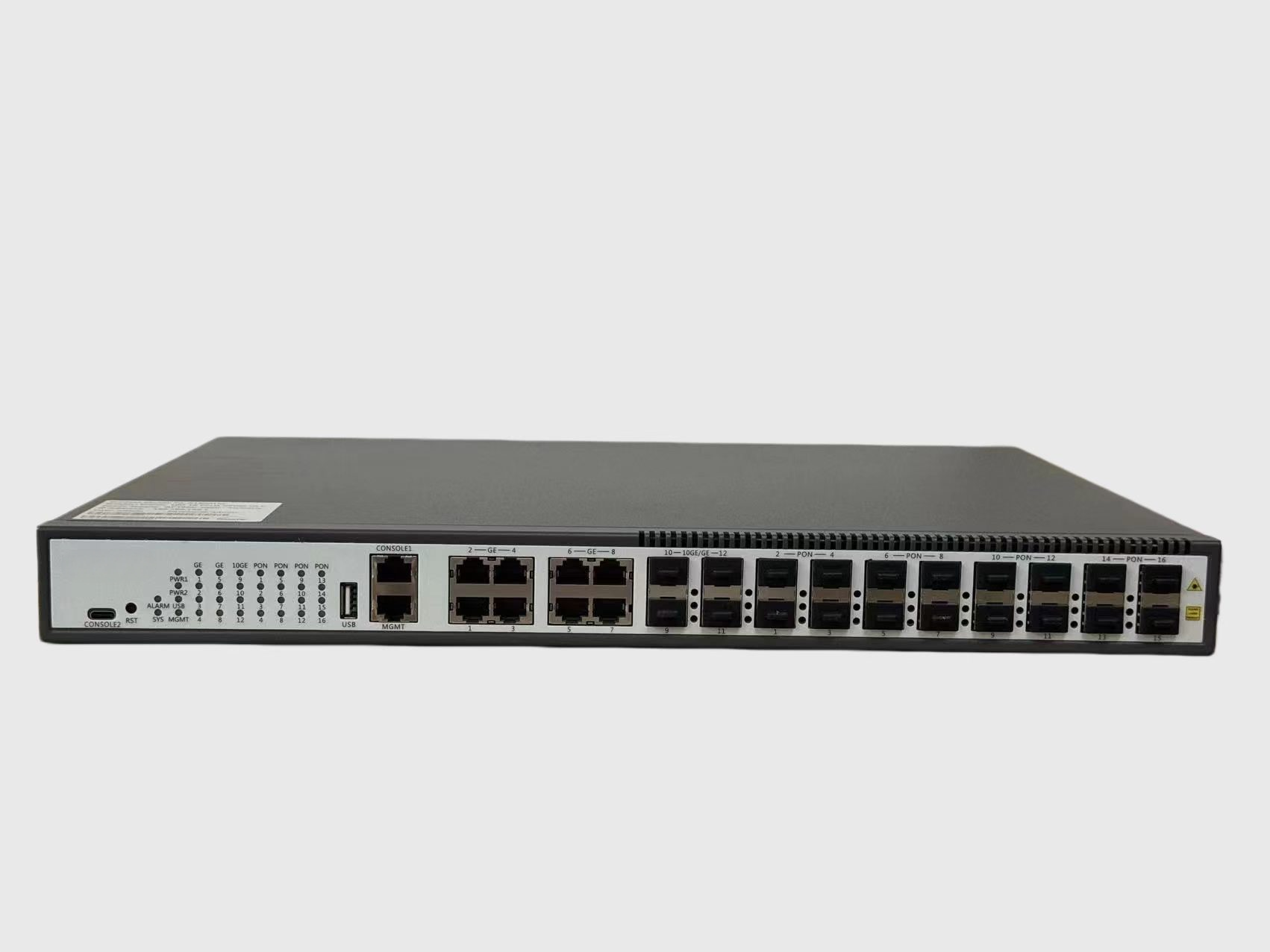

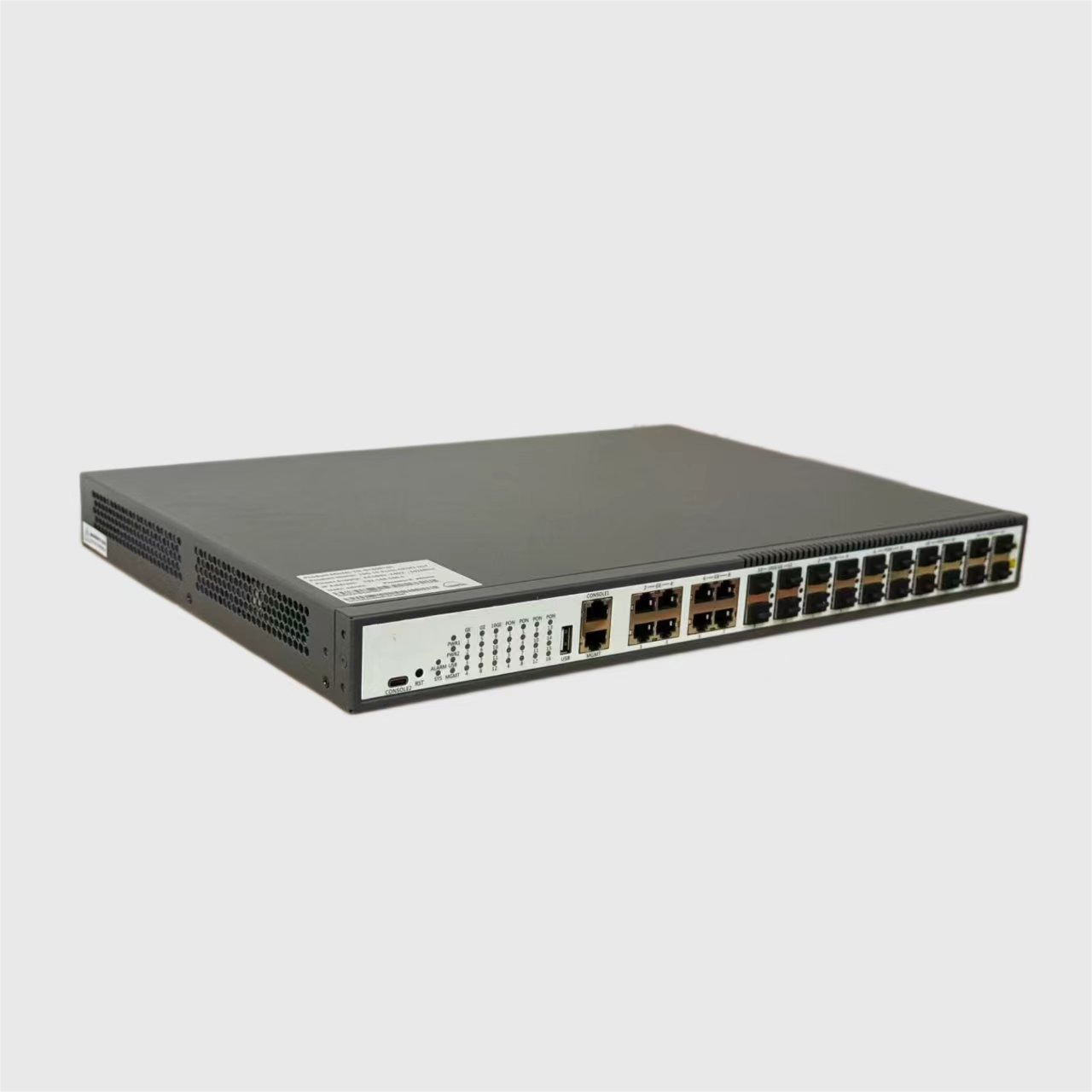

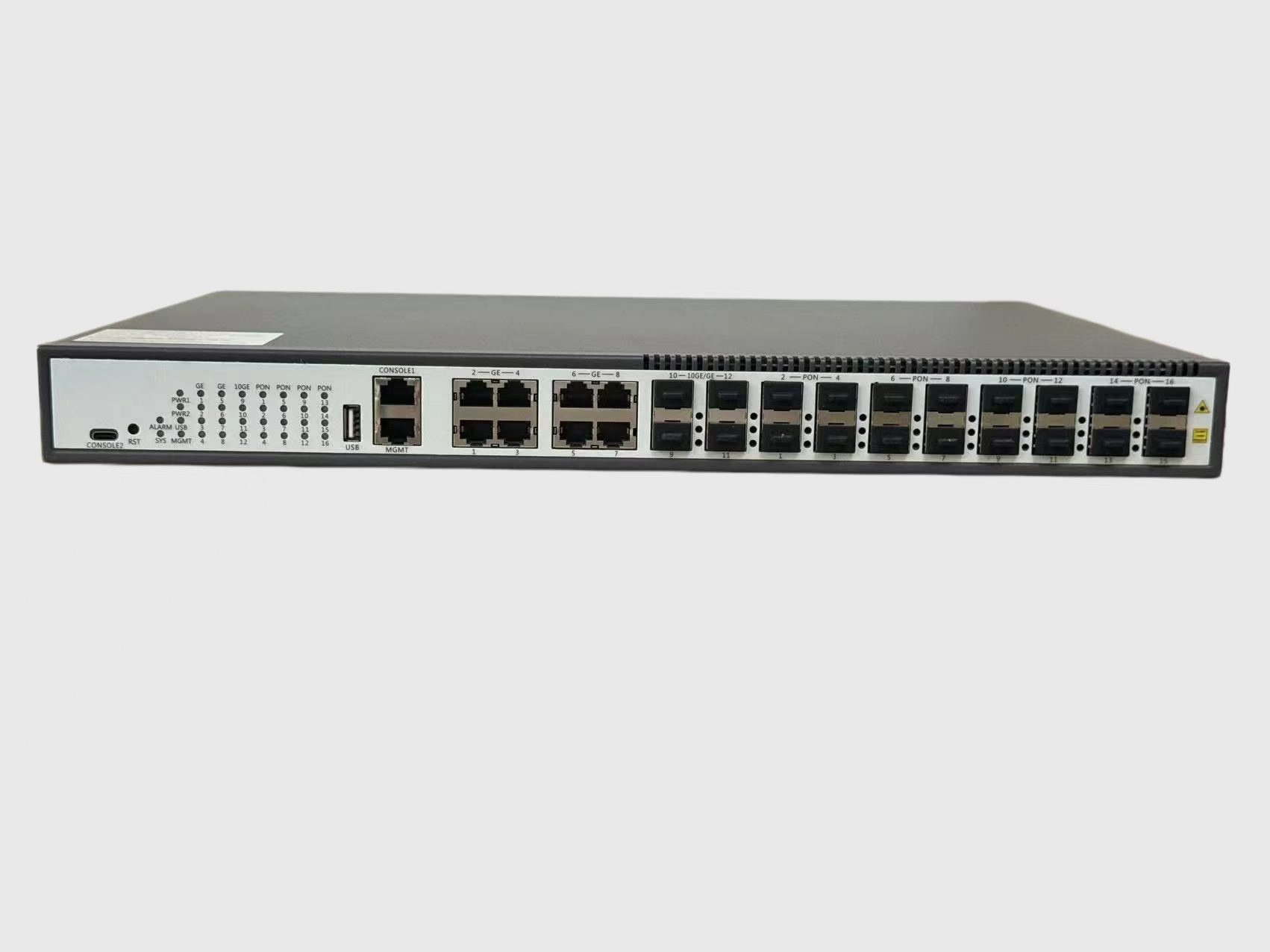

10G 16 Ports EPON OLT ----- FY-E1016P Low Latency | SNMP Management | Triple-Play Service Support
Product Overview
FY-E1016P adopts advanced technology in the industry,splitting ratio up to 1:64,supports different types of ONU hybrid networking which minimizes network operator’s investment. It has powerful ethernet service and QoS guarantee, supports SLA and DBA.
- Product Advantage
1. EPON: FY-E1016P series complies with IEEE802.3ah and YD/T 1475-2006 standard.
2. System capacity: Single PON port can support the access of 64 terminals,the overall unit can support 1024 ONU terminals.
3. Uplink port: support many different types of metropolitan area network interface combination,according to network situation ,select 1000M or 10000M port.
4. Device size: 1U, occupies little space in the computer room, less power consumption, reduces business operating cost.

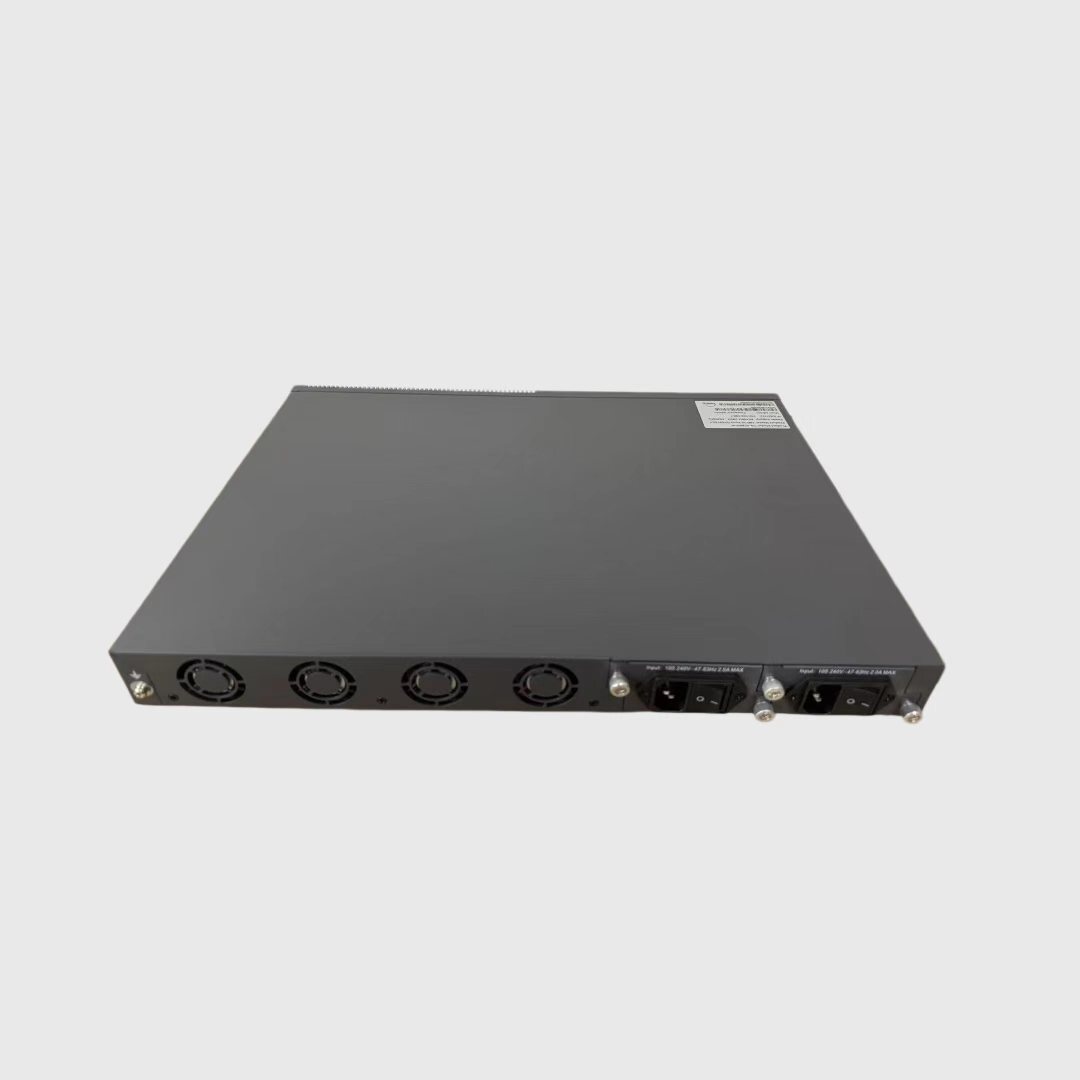

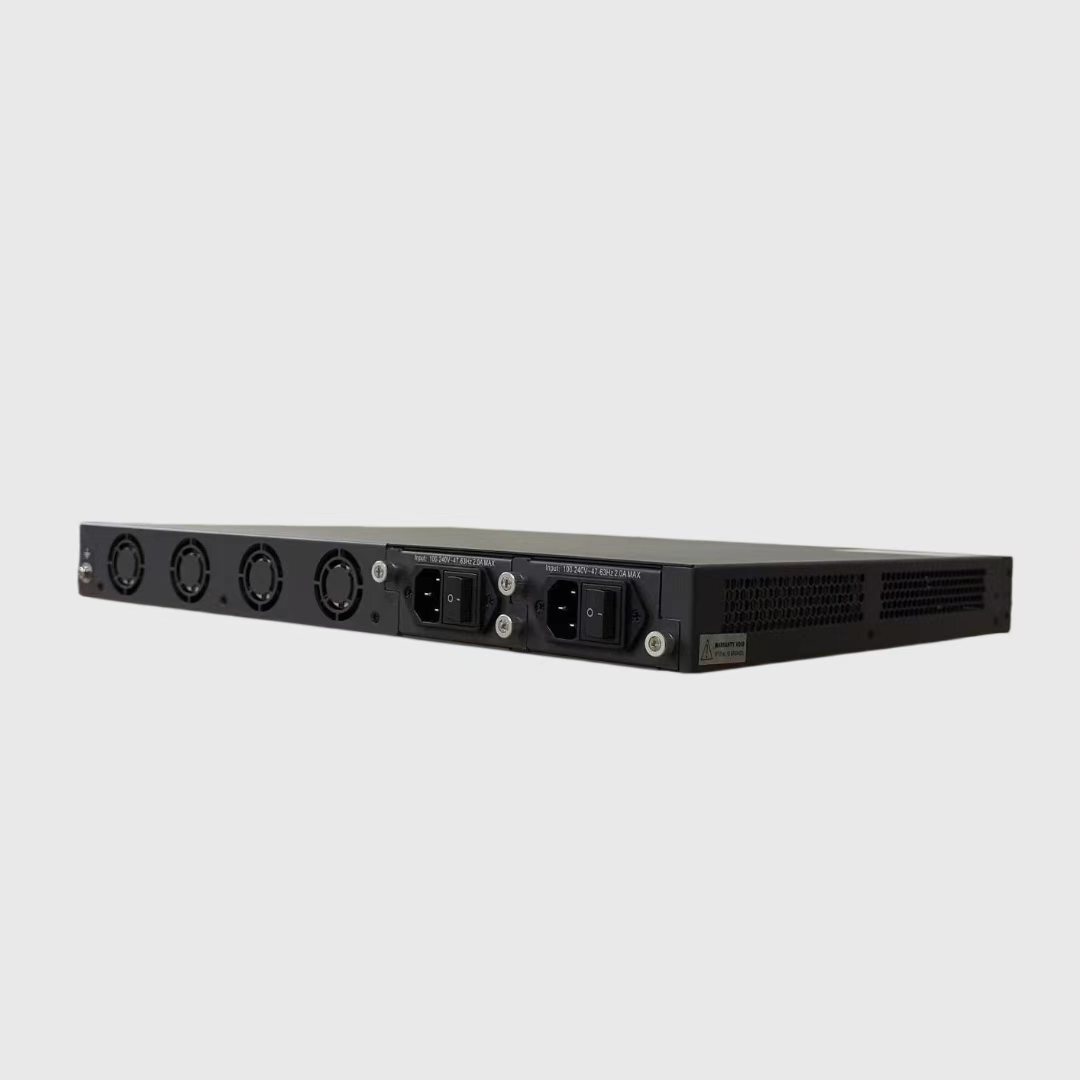

5.High reliability guarantee,support dual power supply.
Product Feature
1.Provide a high density PON port,overall unit can support 1024 ONU terminals,capacity is larger than regular cassette OLT,every PON port supports splitting ratio 1:64,PON optical transceiver is hot plug design,support 20km transmission distance.
2.Support PON optical fiber redundancy protection,automatic link road protection switching in the case of optical fiber failure.
3.Support ethernet function, provide effective isolation guarantee mechanism,VLAN isolation, port protection,MAC address binding,IP address binding,port speed limit, queuing technique ,flow control technology etc provide technical guarantee for the development of multi service integration .
4.Perfect security protection mechanism,use hardware packet forwarding can detect and filter the characteristic packets effectively,MAC address that supports ARP attacks, automatic protection and automatic user blocking capabilities,prevent protocol messages from attacking.Support all kinds of anti DDoS, CPU over-current protection,VRRP and other equipment protection function,revent illegal or abnormal traffic from entering the network,against multiple viruses attack.Ensure the safety of equipment management.
5.Completely support 2 layer business function,achieve flexible QinQ and QoS function.ACL supports L2 to L7 ,deep into the IP message header and 80 bytes message of packet filtering.Provide high quality QoS service quality guarantee for multi service operation
6.Highly centralized operation management and maintenance,for business,provide a unified network transmission and interconnection protocol, address management, domain name management, security management, user access management.OAM function includes configuration, alarm, performance monitoring, fault isolation and security management etc.
● Rich Layer 2/3 switching features and Flexible management methods
● Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP
● Support RIP、OSPF、BGP、ISIS and IPV6
● Safe DDOS and virus attack protection
● Support Power redundancy backup，power pluggable(FY5800-08)
● Support power failure alalm
● Type C management interface(FY5800-08)
Product Specification
Parameters | 16 ports EPON OLT | |
Exchange capacity | 96Gbps | 104Gbps |
Packet forwarding rate | 71.424Mpps | 77.376Mpps |
Memory and storage | memory：512MB, storage：32MB | memory：512MB, storage：32MB |
Management port | Console | Console， Type C |
Port | 4*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ | 8*GPON Port，4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ 16*GPON Port，8*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ |
PON | Comply with IEEE 802.3ah EPON standard 20KM transmission distance 1:64 Max splitting ratio | |
VLAN | Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ | |
MAC | 16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit | |
ring network protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection | |
port control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding | |
Port aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports | |
Mirroring | Support port mirroring Support stream mirroring | |
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. | |
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR | |
Safety | Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection | |
Layer 3 | Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP | |
System management | CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute | |
Environment temperature | Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃ | |
environment humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) | |
environment friendly | China RoHs,、EEE | |
weight | ≤3.5kg | ≤5kg |
fan | Fixed fans (two fans) | Fixed fans（three fans） |
power | AC： 100～240V 47/63Hz； DC： 36V～75V； | |
Power consumption | ≤38W | ≤49W |
Dimensions (Width * height * depth) | 440mm*44mm*200mm | 440mm*44mm*260mm |
Order Information
Product description | |
16 ports EPON OLT | 16*PON port, 8*10GE/GE SFP +8GERJ45 uplink port, Dual power with optional |
